Dimensions
438.5mm(17.2")W x88mm(3.46")H x900mm(35.43")D
Processor
Single Intel® Xeon® 6500P-series and 6700P-series processor with 136 PCIe lanes, TDP up to 350W
Socket
(1) LGA4710 (Socket E2)
Memory
(16) DDR5 DIMM slots, 8 channels per CPU(2DPC), RDIMM/RDIMM-
3DS/MRDIMM
- Max. Frequency:
RDIMM: 6400MT/s(1DPC), 5200MT/s(2DPC)
MRDIMM: 8000MT/s(only support 1DPC)
- Max. Capacity per DIMM: 256GB(RDIMM), 64GB(MRDIMM)
*MRDIMMs are only supported with Intel® Xeon® 6 P-core series processors
Drive Bays
(4) Rear hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
Internal Storage
(2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0)
Expansion Slots
(4) PCIe 5.0 x16 FHFL double wide slots
*The system supports 4 x RTX PRO™ 6000 Blackwell Server Edition GPUs at 30°C ambient
(3) PCIe 5.0 x16 FHFL single wide slots
RAID
NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
Front I/O
(1) 1000Base-T Dedicated Server Management port
(1) USB 3.0/2.0 Type-A port
(1) Mini Display port
(1) Power LED button
(1) UID LED button

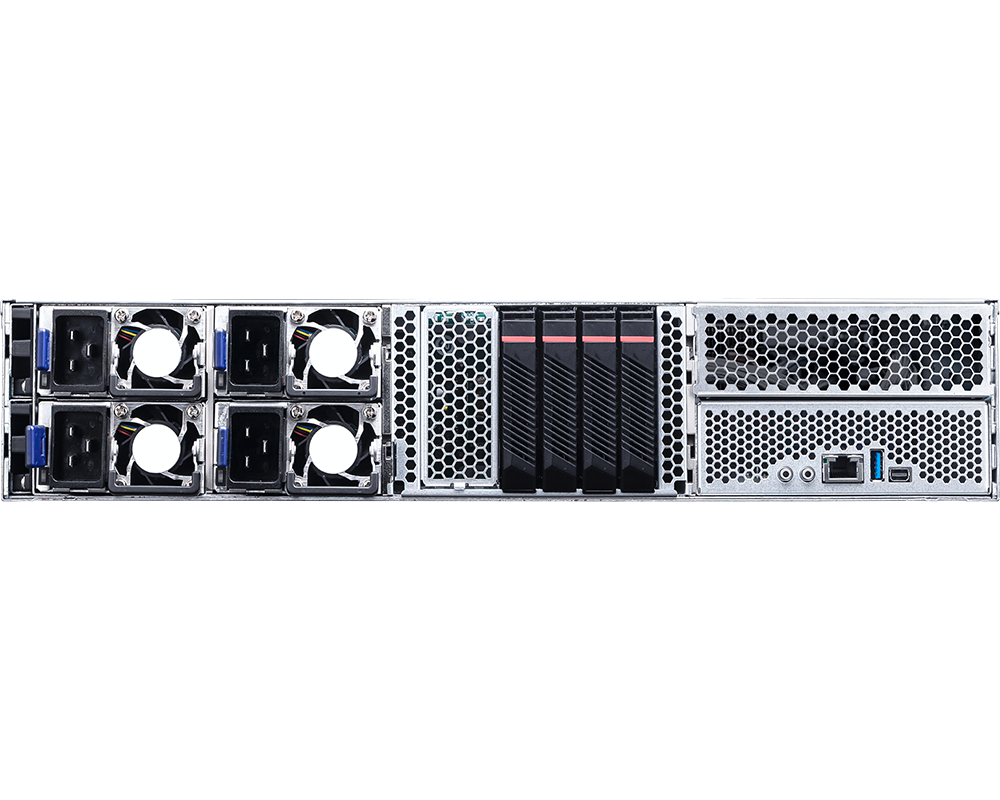

Rear I/O
(4) Hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
Security
Chassis intrusion
On-board TPM2.0
Hardware Root of Trust - Microchip CEC1736 supported (optional)
Server Management
(1) 1000Base-T Dedicated Server Management port
ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF
Redfish Dual BIOS* and dual BMCAPI
Dual BIOS* and dual BMC
eMMC for local BMC storage media
* Dual BIOS is exclusively implemented to support the Embedded Root of Trust (ERoT)
Environment
System Operating Temperature: 0°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -20°C ~ 70°C (-4°F to 158°F)
Non-operating Relative Humidity: 5% to 85% (non-condensing)
Power Supply
(2+2) Redundant 2400W CRPS 80 PLUS Titanium
Dimensions (WxHxL): 73.5 x 40 x 185 mm
Rating:
AC Input: 100-127Vac, 12A, 47-63Hz
Output: Max 1000W, DC +12V/82A, +12Vsb/3A
AC Input: 200-240Vac, 15A, 47-63Hz
Output: Max 2400W, DC +12V/196.7A, +12Vsb/3A
DC Input: 240V, 15A
Output: Max 2400W
*C19 power cords are required and will be offered as optional accessories.
Cooling
(1) Air cooling module for max. 350W CPU
(6) 6056 System Fans
Certification
CE, FCC (Class A)
Package Contents
(1) Barebone
(1) Quick guide
(1) Slide rail kit
(1) CPU cooler
(1) CPU carrier E2A
(1) CPU carrier E2B
(4) CRPS PSUs
(4)Power cables PCIe CEM5(12VHPWR) 16-pin power cables(inside system)
(1)Power cable for BlueField-3 DPU
Optional parts
NVL Bridge Removal Tool
Power cords:
- C19 1.8m 125V/15A(US, NEMA 5-15P): K33-3001279-I45
- C19 1.8m 250V/15A(US, NEMA 6-15P): K33-3001366-I45
- C19 1.8m 250V/16A(EU): K33-3001283-I45
- C19 1.8m 250V/16A(CN): K33-3001280-I45
- C19 1.8m 250V/15A(JP): K33-3001347-I45
- C19 to C20 1.8m 250V/20A(US): K33-3001422-I45
- C19 to C20 1.8m 250V/16A(EU): K33-3001423-I45
