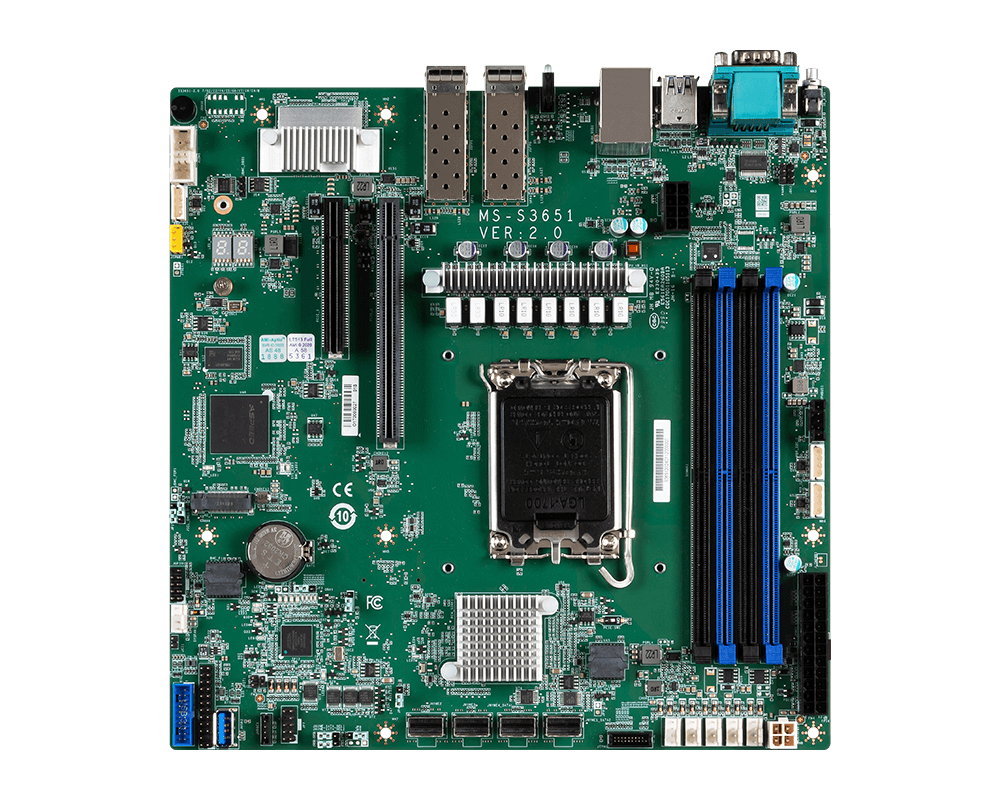

Dimensions
243.84mm(9.6") x 243.84mm(9.6")
Processor
Single Intel® Xeon® E-2400 and 6300 processor, up to TDP 95W Intel® Pentium® G7400/G7400T, TDP up to 46W
Socket
(1) Intel® Socket LGA1700
Memory
(4) DDR5 DIMM slots, 2DPC, ECC/non-ECC UDIMM - Max. Frequency 4800MT/s (1DPC) and 3600MT/s (2DPC) - Max. Capacity per DIMM: 32GB
Internal Storage
(1) SlimSAS 4i for (1) PCIe 4.0 x4 NVMe or (4) SATA3.0 (1) SlimSAS 4i for (1) PCIe 3.0 x4 NVMe or (4) SATA3.0 (2) SlimSAS 4i for (2) PCIe 4.0 x4 NVMe (1) M.2 2280/22110 PCIe4.0 x4
Expansion Slots
(1) PCIe 5.0 x16 slot from CPU (1) PCIe 4.0 x8 slot (x4 signal) from CPU
Networking
(2) 25G SFP28 Ethernet Ports (Intel E810XXVAM2) *Both support NCSI , only one NCSI LAN port can be enabled at a time
RAID
Intel® SATA RAID 0/1/10/5
Graphics
(1) D-Sub 15-pin port from the integrated AST2600 BMC
USB
(7) USB3.2 Gen1 Ports
Rear I/O

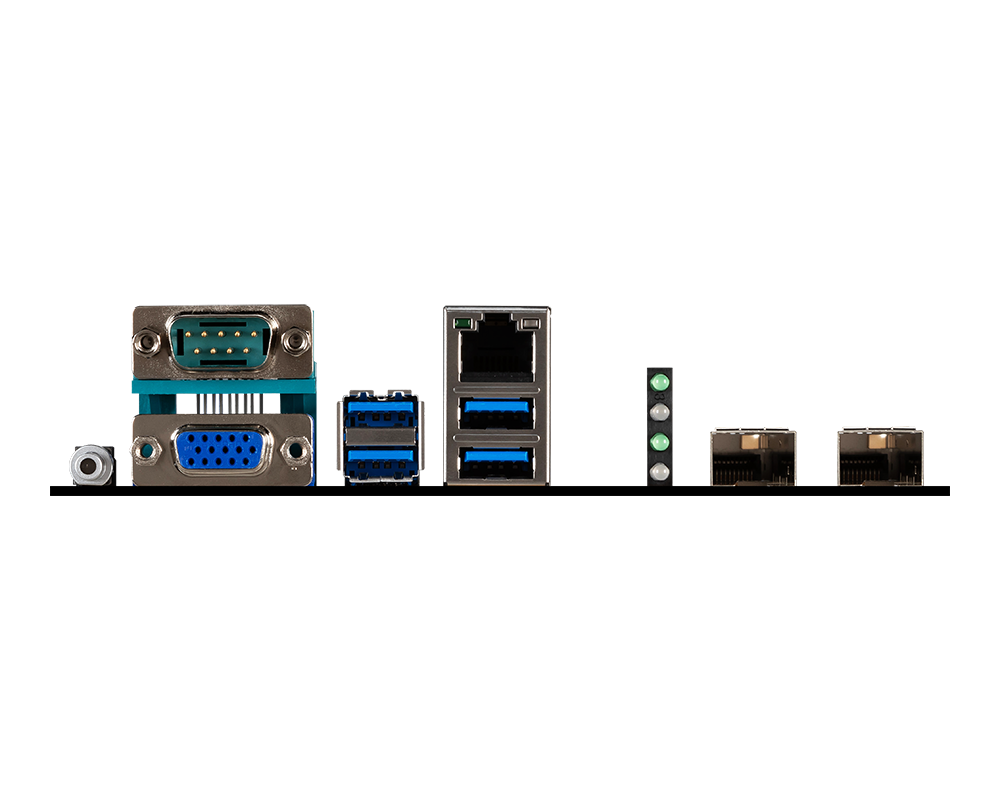

(2) 25G SFP28 Ethernet Ports (1) 1000Base-T Dedicated Server Management Port (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) COM DB9 Port (1) UID LED Button (1) 1x4 Link/Speed LEDs for SFP28 ports
Internal I/O
(1) USB3.2 Gen1 x2 header (1) USB3.2 Gen1 TypeA (1) SPI TPM header (1) COM header (1) Buzzer (1) Intrusion header (1) Front panel header (3) I2C headers (1) IPMB headers (1) GPIO header (1) PMBus header (6) 4-pin PWM FAN header
Power Connector
(1) 24-pin ATX power connector (1) 8-pin 12V power connector (1) 4-pin power connector for HDD BP
Security
Optional TPM2.0 module (header on board)
Server Management
(1) 1000Base-T Dedicated Server Management Port (Realtek RTL8211FD-CG) ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Single BIOS and single BMC
Environment
Operating Temperature: 0°C ~ 40°C Non-operating Temperature: -20°C ~ 70°C Non-operating Relative Humidity: 5% ~ 85% (non-condensing)
Certification
CE, FCC (Class A)
Package Contents
(1) Quick guide (1) D1505 motherboard (1) I/O shield (1) Slimline-4i to (4) 7-pin SATA fanout cable
Parts List
(1)Quick guide: G52-S3652X1-Q13 (1)I/O shield:E21-S365010-C22 (1)SATA Cable: K1K-3028001-V03
Optional parts
TPM2.0 module: TPM20-IR
