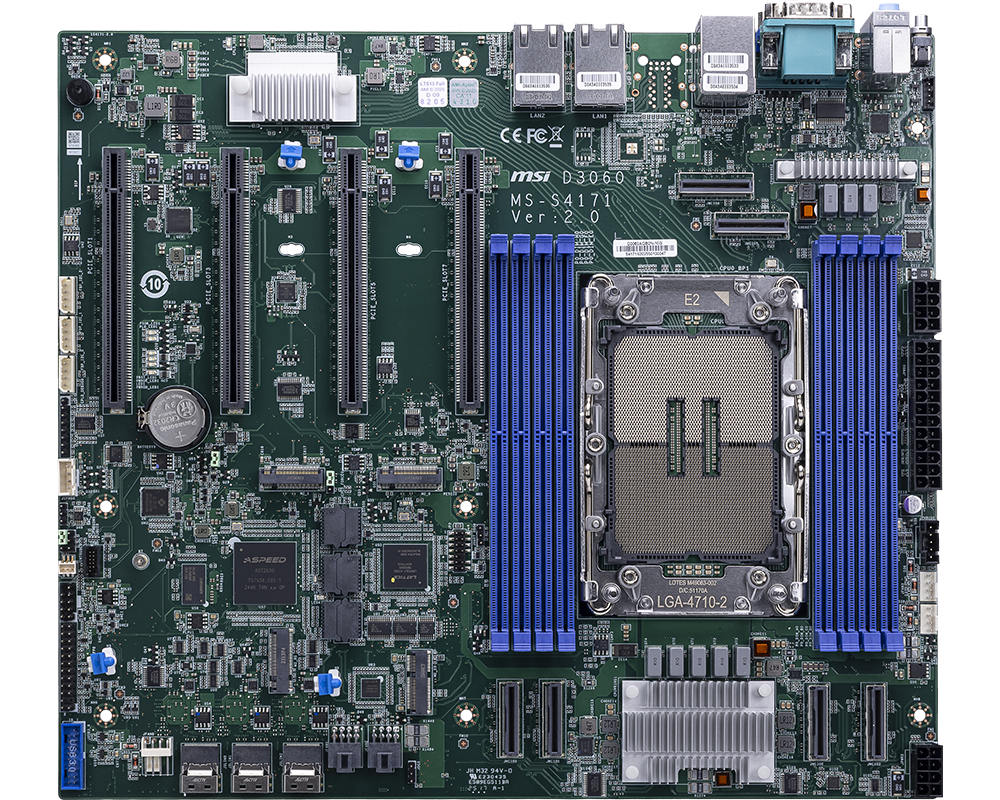

Form Factor
SSI CEB (with ATX screw holes)
Dimensions
305mm(12") x 267mm(10.5")
Processor
Single Intel® Xeon® 6700E-series, 6500P-series and 6700P-series processor, TDP up to 350W
Socket
(1) Intel LGA 4710 (Socket E2)
Memory
(8) DDR5 DIMM Slots, 8 channels(1DPC), RDIMM/RIMM-3DS/MCRDIMM - Max. Frequency: RDIMM: 6400MT/s MCRDIMM: 8000MT/s - Max. Capacity per DIMM: 256GB(RDIMM), 64GB(MCRDIMM) *MCRDIMMs are only supported with Intel® Xeon® 6 P-core series processors
Internal Storage
(2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (3) SlimlineSAS 4i for 12 SATA3.0 drives
Expansion Slots
(4) PCIe 5.0 x16 slots (one slot only functional with R1S CPU) (6) PCIe 5.0 x8 MCIO 8i connectors(four connectors only functional with R1S CPU)
Networking
(2) 10G Base-T Ethernet Ports (Intel® X710AT2 with NCSI supported) * only one NCSI LAN port can access the BMC at a time
RAID
NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
Graphics
(1) D-Sub 15-pin port from the integrated AST2600 BMC
Audio
(3) 3.5 mm Audio Jacks (Vertical Stack: Line-in / Line-out / Mic-in)
USB
(2) USB 3.2 Gen 1 Type-A ports (1) 20pin-header for 2 ports USB3.0

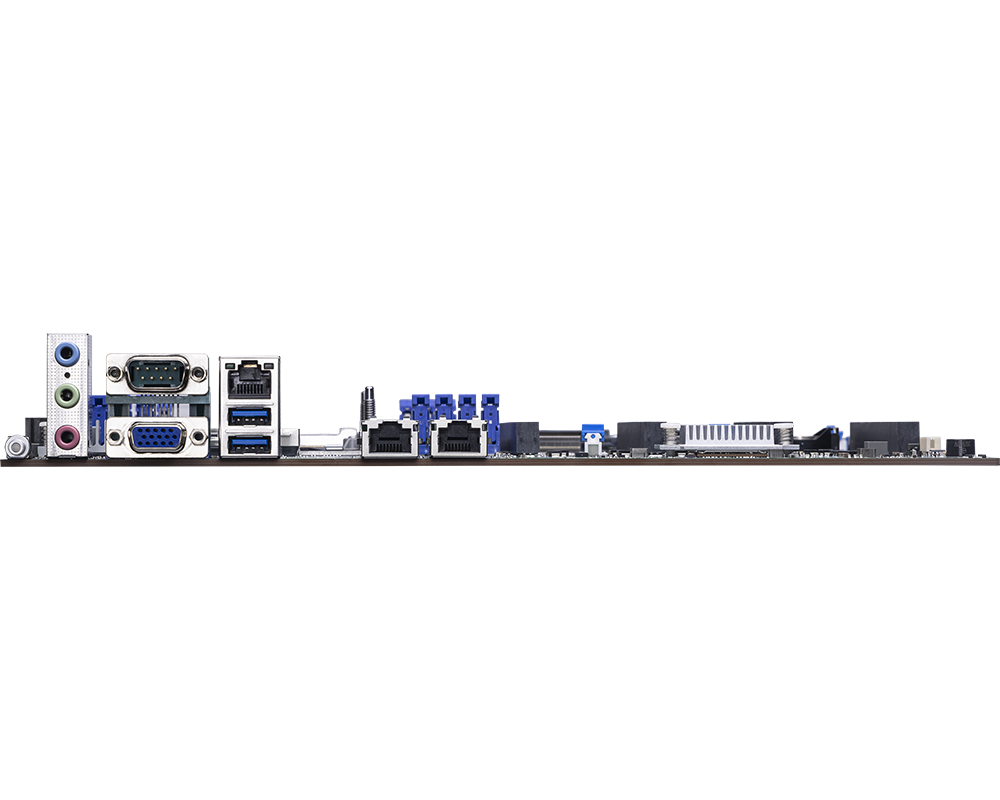

Rear I/O
(2) 10Gbase-T Ethernet ports (1) 1000Base-T Dedicated Server Management port (2) USB 3.2 Gen 1 Type-A ports (1) VGA D-Sub port (1) COM port (3) 3.5 mm Audio Jacks (Vertical Stack: Line-in / Line-out / Mic-in) (1) UID LED button
Internal I/O
(1) M.2 2230 A-E key for Wi-Fi 6/7 module (1) 20pin-header for 2x USB3.0 (1) Buzzer (1) Chassis intrusion header (3) I2C headers to support storage BP (1) IPMB header (1) GPIO header (1) PMBus header (1) 80 Port header for debug card (3) 4-pin PWM FAN headers (2) 8-pin PWM FAN header (8-pin to 4-pin adaptor cable is offered as optional parts)
Power Connector
(1) 24-pin ATX power connector (2) 8-pin for ATX 8-pin power connectors
Security
Chassis intrusion (header on board) Optional TPM2.0 module (header on board)
Server Management
(1) 1000Base-T Dedicated Server Management port ASPEED AST2600 with AMI MegaRAC based firmware supporting IPMI 2.0 and DMTF Redfish API Single BIOS and dual BMC
Environment
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Non-operating Temperature: -20°C ~ 70°C (-4°F to 158°F) Non-operating Relative Humidity: 5% to 85% (non-condensing)
Certification
CE, FCC (Class A)
Package Contents
(1) Board in single pack or (10) boards in bulk pack (1) Quick guide (1) CPU carrier E2A (1) CPU carrier E2B (1) SlimSAS 4i to 4 SATA fanout cable (single pack only) (1) I/O shield
Optional parts
TPM2.0 module: TPM20-IRS Adaptor cable for 8-pin PWM FAN to 4-pin: K1G-3008121-V03
